Restoring the Lintel and Columns

We are currently working on cleaning the restoration layer off the three columns and the lintel. The photos in the gallery below show of the lintel being taken down from the wall and being packed for shipping. The last photo shows one of the columns in my studio. (Click the photos to advance the slide.)

Posted on August 17, 2017 .

Methods of Manufacture

To construct the sculptures in the Chapel of the Good Shepherd, Nevelson first made maquettes of each sculpture.  The maquettes do not exist anymore, but from photographs, it is apparent that the final sculptures differed from the original designs.

Maquette of Cross of the Good Shepherd and Twelve Apostles. Many elements on the finished sculpture are not found on the moquettes.
Birds eye view of the maquette.

Birds eye view of the maquette.

Maquette of the Twelve Apostles and Cross of the Resurrection.  Elements on the Twelve Apostles maquette but not on the original include the chess pieces, replaced with curving wood elements.  Elements missing on the maquette but present on the final sculpture are curving elements attached to the four lower circular elements.

Maquette of the Twelve Apostles and Cross of the Resurrection.  Elements on the Twelve Apostles maquette but not on the original include the chess pieces, replaced with curving wood elements.  Elements missing on the maquette but present on the final sculpture are curving elements attached to the four lower circular elements.

Posted on June 22, 2016 .

Surface Consolidation Summer 2016

Katie Patton Bell (left) and Julianna Ly working on Sky Vestment. Consolidating paint before cleaning.

Katie Patton Bell (left) and Julianna Ly working on Sky Vestment. Consolidating paint before cleaning.

This summer (2016) we are setting down the restoration paint and original paint to preserve the original and prepare for surface cleaning.



Lifting areas on Grapes and Wheat Lintel before consolidation to glue down flaking paint

Lifting areas on Grapes and Wheat Lintel before consolidation to glue down flaking paint

After consolidation. Paint is glued down.

After consolidation. Paint is glued down.

Soraya Alcala consolidating paint on The Twelve Apostles.

Posted on June 22, 2016 .

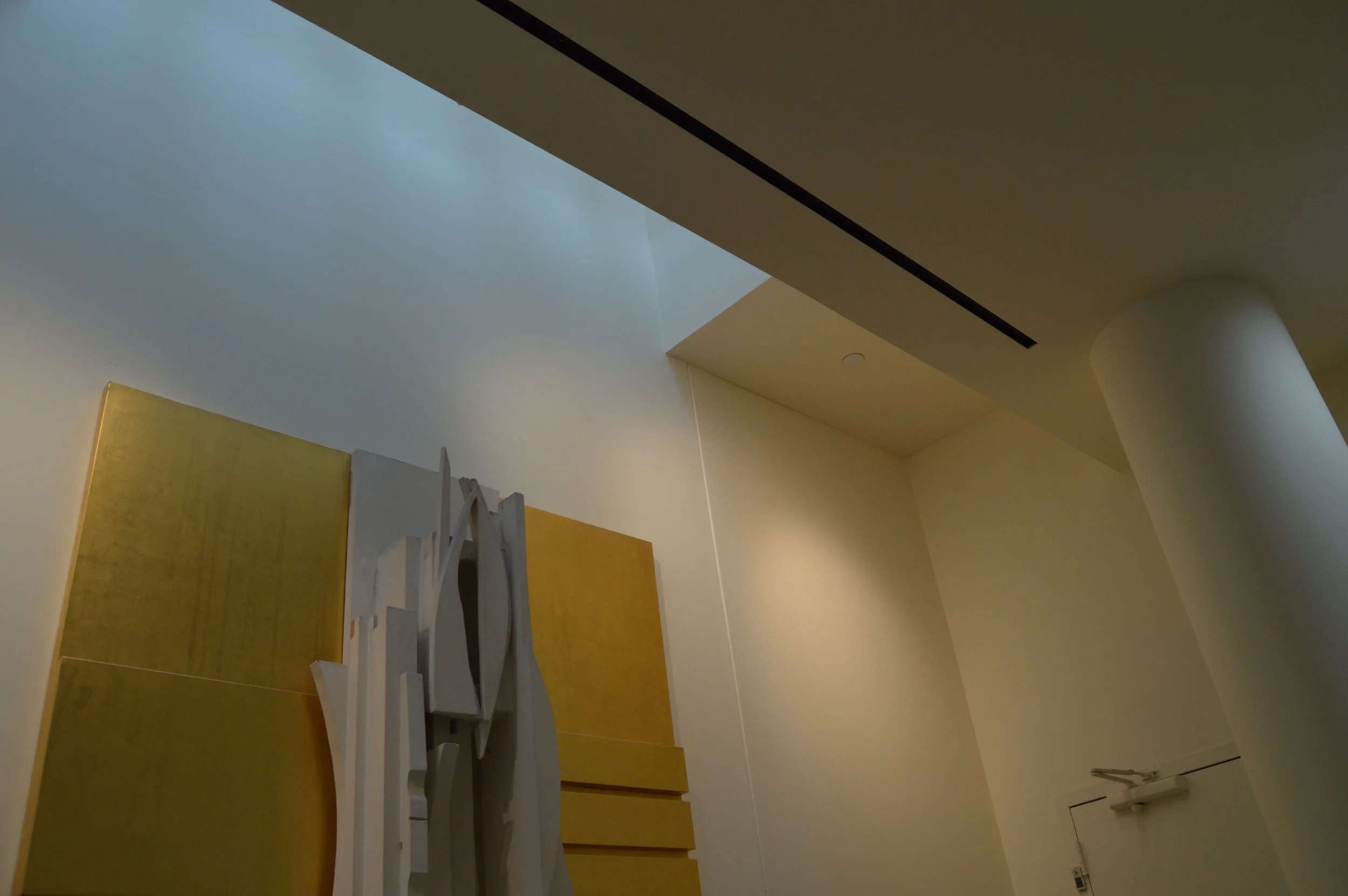

Surface Gilding of Cross of the Good Shepard

The gilding on the Cross of the Good Shepherd was researched by Julianna Ly, who found that it is likely one of the few, if only, Louise Nevelson large scale gilt sculptures.  While Nevelson did often spray paint large scale sculptures gold, other large scale gilded sculptures have not been located to date.

The gilding is in good condition, although it is dirty with dust and grime and there are drips down the front surfaces.  Examination with magnification and ultra violet light indicates that the surface has been coated with a natural resin, probably applied during original construction. The resin has a slight yellow/brown hue, dulling the brilliant gold.

The manufacturing techniques are not documented.  Surface examination indicates that the surface is water gilded, meaning that an initial bole was applied and then covered with squares of gold leaf. The gold was then burnished to further adhere it to the bole.  The surface was then varnished with a natural resin.

Because there has been no other documentation of Nevelson gilding, it is not clear who actually applied the gold leaf.  However, documented working methods of other Nevelson pieces clearly indicate that Nevelson never surrendered control over executing her artworks, and it can be assumed that although Nevelson might not have personally applied the gold leaf, she had a strong role in managing the process.

Gilding detail, edge of gilded panel.  Dark areas are degraded varnish.

Gilding detail, edge of gilded panel.  Dark areas are degraded varnish.

A surface drip probably from condensation along the skylights above the Cross.  The drip removed the surface dirt and natural resin coating, showing the difference between the coated and uncoated gilding.

A surface drip probably from condensation along the skylights above the Cross.  The drip removed the surface dirt and natural resin coating, showing the difference between the coated and uncoated gilding.

Posted on June 20, 2016 .

Approach to conservation

Sarah Nunberg felt that the ethics behind conservation of the chapel was central to deciding the proper conservation treatment, resulting in extensive discussions with paintings conservators Carolyn Tomkiewicz, and Soraya Alcala, and chemists Chris McGlinchy and Cindie Kehlet.

Three treatment options were discussed based on practices applied to other white Nevelson sculptures and our own observations of the Chapel of the Good Shepherd paint surface:

1: Remove all paint with a heat gun and scraping spatula, then prime and repaint the surface.

2: Consolidate all paint, then fill and tone losses, also toning out brown streaking, discoloration and dirt.

3: Consolidate all paint and clean off top layer of restoration, leaving the first restoration layer in tact.  The original cream color would show through, along with a grayish thin paint application. Fill and tone losses and carry out any further toning necessary to cover distracting irregularities.

For all scenarios, environmental management is essential for long term preservation.

Option three was decided upon using a gel system to clean off the top restoration paint.  The latest restoration paint responds readily to the chosen gel system. However, the earlier, more compact restoration layer and the original layer do not respond to the gel system.

Justification: Removal of all the paint was not favorable, as the process did not comply with the AIC code of ethics because the original paint layers were applied either under Nevelson's direct supervision or in part by Nevelson herself (see methods of manufacture page on this website). GIven the wooden substrate, application of a new paint layer would require substantial surface preparation, further altering the original surfaces and long term maintenance of the new restoration layer would need to be considered.

The ethics behind removing the restoration paint were discussed as well.  It is likely that some of the restoration paint was applied during Nevelson's lifetime.  Nevelson suggested reapplying white paint to keep her sculptures clean.  The more compact restoration layer, closest to the original layer, may have been part of the original construction- did Nevelson apply this layer herself during installation to cover seams and touch up after assembly?

Preserving the current restoration surface seemed counterintuitive given the textured, discolored and streaked surface with brown staining, which is so different from Nevelson's original intent of a pure white space.  Additionally, the interaction between the restoration paint and the original paint was found to be detrimental to the original paint.  The brown streaking appears to be a result of this interaction and is mostly in the restoration paint, so reduction or removal of this layer would remove the disruptive brown streaking. Cleaning tests confirmed this.

The current solution to remove the dirty, streaked, textured, stained restoration paint, but leave the compact, smoother layer seemed to be a good compromise that could be accomplished using the gel system.  The chosen system is water based so it is non-toxic to conservators and the environment, and the method of application and cleaning is the most efficient of all options explored.

Posted on September 9, 2015 .

Environmental Management

Environmental management is key to outlining the treatment plan. The ability to control the environment will be a part of the treatment goals. Currently the relative humidity range varies from 6% to over 58% in a year. Reducing this range will be key to preserving the paint. How much this range can be reduced is still under consideration. Collecting data to determine the current relative humidity under the supply air will help in determining how to decrease the RH range. This work is on going. Ambient data logging began in December 2013 and continues. Data logging at the sculptures, beneath the supply air, began in December 2014.

Posted on August 30, 2015 .
